Cavity Units

Complete Plus

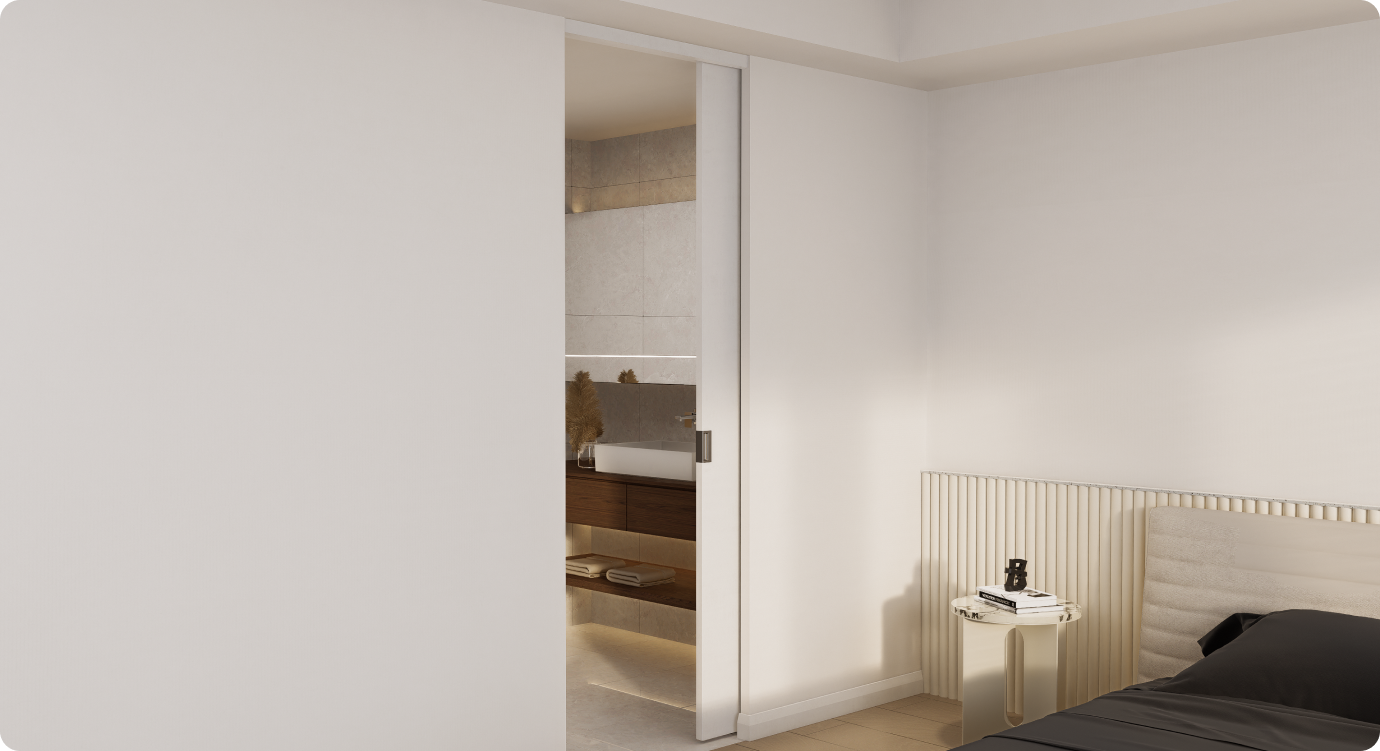

Premium performance for standard-sized cavity doors

The Complete Plus Series is a versatile mid-range cavity system designed for townhouses, custom homes and residential projects. It includes premium features such as aluminium jamb components, cavity brush seals, concealed guides and soft-close/soft-open operation as standard.

Best suited for
Townhouses, custom homes and mid-range residential projects.

Key features

• Soft-close and soft-open as standard
• Self-balancing rollers
• Aluminium split jambs and posts
• Cavity brush seals
• Concealed bottom guide
• Flush-pull and flush-jamb convertible
• X-Wide option for larger doors and heavier wall finishes

Maximum specifications

• Door height: 2340 mm
• Door width: 920 mm standard
• Door width with X-Wide centre mullion: 1200 mm
• Soft-close capacity: up to 90 kg
• Door thickness: up to 40 mm
• Stud size: 90 mm
• Door type: timber

Finish options

• Architrave
• P50 shadowline
• P25 stopping angle
• Flush-jamb
• Flush-pull

Standard inclusions

• Soft-close and soft-open mechanism
• Self-balancing rollers
• One-motion quick-release brackets
• Aluminium-backed split jambs
• Brush seals
• Concealed floor guide
• Rebated closing jamb
• Smart jamb spacers
